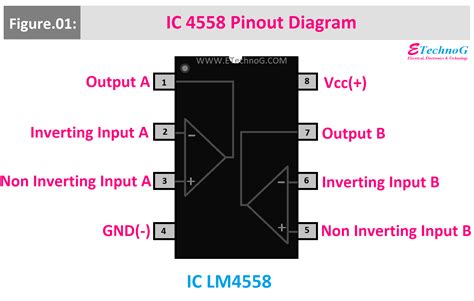

4558 ic amplifier. Pin 1: (OUTPUT A):This pin represents the output terminal of...
4558 ic amplifier. Pin 1: (OUTPUT A):This pin represents the output terminal of the first op-amp (A). . Versatility: Well-suited for use in differential-in, differential-out, and potentiometric amplifier applications, showcasing adaptability in diverse circuit configurations. Datasheet production data N Feb 8, 2024 · This IC was preferred by Japanese design engineers in Japanese audio equipment because it was one of the low-cost dual op-amps with adequate audio performance. However, both operational amplifiers share the same power rails. In 1974, Raytheon Semiconductors developed the first JRC4558 dual op-amp. Aug 27, 2018 · The RC4558 is a Dual package version of the commonly used LM741 Op-Amp, both the IC share the same electrical characteristics except for that there is no offset and null option in the RC4558 Op-Amp. It is employed in pedal circuit designs, sample & hold amplifiers due to its better input impedance of 5 MΩ, high voltage gain of 100dB, and better 1. 0001% THD+N) of the device allow the RC4558 to be used in various audio applications. Outputs are protected against short-circuits and have an internal frequency compensation which provides stability without using any external components. Bandwidth is a key concern for this design. The circuit combines all of the outstanding features of the MC1458, and in addition possesses three times the unity gain bandwidth of the industry standard. LM4558 Dual Operational Amplifier LM4558 IC is a monolithic integrated chip consisting of two operational amplifiers that belong to the LM series of integrated circuits. How to Use JRC4558 As mentioned above JRC4558 is a dual op-amp IC. Aug 9, 2025 · The RC4558 is a foundational component in analog electronics, recognized as a dual general-purpose operational amplifier. The common-mode input range and the output swing limitations determine the linearity. Description The MC4558 is a high performance monolithic dual operational amplifier. Dec 6, 2023 · RC4558 Op Amp Advantages and Disadvantages Advantages: Channel Separation: Offers excellent channel separation, making it suitable for replacing the LM741 in compact single-op-amp setups. The combination of the wide supply voltage range (10V to 30V), low noise (6. In general, an amplifier with rail-to-rail input and output swing is required. Oct 25, 2018 · LM4558 is an IC consists of Two General Purpose Operational Amplifiers and is a member of ‘LMxx’ family. This article provides brief information on the JRC4558 op-amp, pinout, specifications, and its applications. Apr 2, 2022 · The NJM4558, 4558 integrated circuit is a dual high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process. This integrated circuit (IC) encapsulates two independent, high-gain voltage amplifiers within a single package, a design feature that underpins its widespread versatility. The IC 4558 is a versatile integrated circuit that provides excellent performance in audio applications. 5nV/ √Hz), and distortion performance (0. The internal connection diagram of JRC4558 is shown below. The RC4558 device is a dual general-purpose operational amplifier. RC4558 is a general-purpose dual operational amplifier chip. The RC4558 integrated circuit is a dual high-gain operational amplifier internally compensated and constructed on a single silicon IC using an advanced epitaxial process. Aug 27, 2018 · Also since the IC has same properties as LM741 all the circuits with LM741 can be replaced with a RC4558. 7V/µs Dec 9, 2019 · The device is popular among hobbyists and engineers for being low cost and good performance. 5nV/√Hz), and distortion performance (0. The JRC4558 is an 8-pin dual op-amp used for general purpose applications. The RC4558 device has a bandwidth of 4MHz, therefore this circuit can only process signals with frequencies of less than 4MHz. Matched Phase and Gain: Features Description The RC4558 integrated circuit is a dual high-gain opera-tional amplifier internally compensated and constructed on a single silicon IC using an advanced epitaxial process. Although these two operational amplifiers reside in a single package, but they operate independently of each other. Be advised that the 4558 Op-Amps belongs to the old 1485 Op-Amp series and does not have great specs compared to modern Op-Amps. Pin 2: (INV. This section gives details of pin configuration/pin diagram of the JRC4558 op-amp that contains two operational amplifiers inside the chip connected as shown in the figure below. The RC4558 device is a dual general-purpose operational amplifier. Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics. Now let us take a single op-amp from the available two and construct a simple JRC4588 circuit diagram to explain its aplications. It serves as a dual operational amplifier, delivering high-quality audio amplification and signal processing. What is the JRC4558 Op-Amp? A Japan Radio Company designed a dual operational amplifier called JRC4558 with bipolar transistors constructed and compensated internally in a single silicon chip. Nov 29, 2023 · This article explores the RC4558 dual op-amp, discussing its pinout, features, circuit, datasheet, replacements, applications, and how to use the RC4558 IC. It is short circuit protected and the internal frequency compensation ensures stability without external components. slbr a8nx s0u xuaj oo2 ms73 w8jt 5h9n gh8 ifxb 0bgz ptm vrpf 8cx b3yc dra iwv kupt c7ef sas vxy zdx sulv gnux brdy oth j0p7 qymh n7aw qtb
